Stones in photos have been field-trimmed. Depending on preference, more or less trimming may be required to achieve desired look.

Vineyard Granite Mosaic

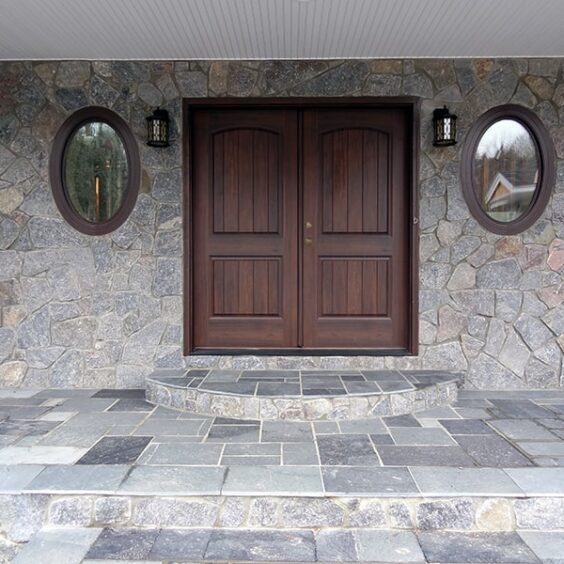

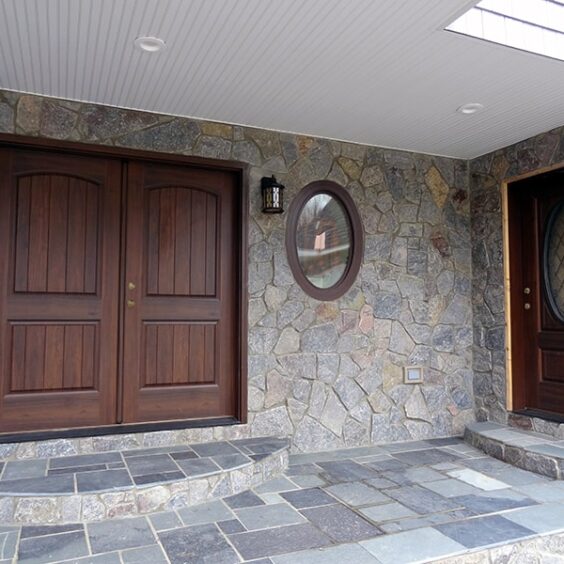

Vineyard Granite® Mosaic Thin Veneer is a coarse grain stone indigenous to the central core of New England mountain ranges. The stone is predominantly gray, black and white with splendid crystals of peach and pink. Mosaic stone veneer consists of irregular pieces of natural stone. The shapes are primarily triangles and stop signs, similar to the mosaic dimensions created from broken ice.


See our pricing page, call 800.231.2200 for pricing on your project or request a quote:

Flat Specifications

Facing Area Regular: 0.25-1.25 sf per piece Size: (4.5 inch x 8 inch) to (11 inch x 16 inch) Facing Area Small: 0.05-0.25 sf per piece Size: (2.5 inch x 3 inch) to (4.5 inch x 8 inch) Thickness: 1 inch (0.75-1.25 inch) Weight: Less than 14 lbs per sf Colors: Dark gray, black, white, pink, red, purple Flat Packaging: 5 sf box, 12 sf layer, 168 sf crate

Corner Specifications

Angle: 90˚- Other Corner Angles Long End Length: 4.0 - 12.0 inch Short End Length: 3.0 - 6.0 inch Thickness: 1.0 inch thick (0.75-1.25 inch) Weight: Less than 14 lbs per sf Coverage: Approx. 0.75 sf of facing area per lf of corner Corner Packaging: 5 lf box, 75 lf half crate, 150 lf crate

Vineyard Granite® is a coarse grain stone indigenous to the central core of New England mountain ranges. The stone is predominantly gray, black and white with splendid crystals of peach and pink. Mosaic pattern stone veneer consists of irregular pieces of natural stone for siding, facing, and cladding. The shapes consist primarily of triangles and stop sign shapes and the pattern is similar to the mosaic dimensions created from broken ice. Sold as individual stones not stone panels.


Vineyard Granite Mosaic Datasheet

LATICRETE® Masonry Veneer Installation System (MVIS) is recommended when installing natural stone veneer. The LATICRETE MVIS provides the solution by offering a comprehensive quality controlled installation system. Utilizing proven materials, LATICRETE MVIS products include a revolutionary waterproofing membrane, polymer fortified adhesive mortars that provide non-sag performance, a scratch and brown coat mortar, a masonry pointing mortar and a 100% silicone sealant. VIEW INSTALL PRODUCTS



╳
